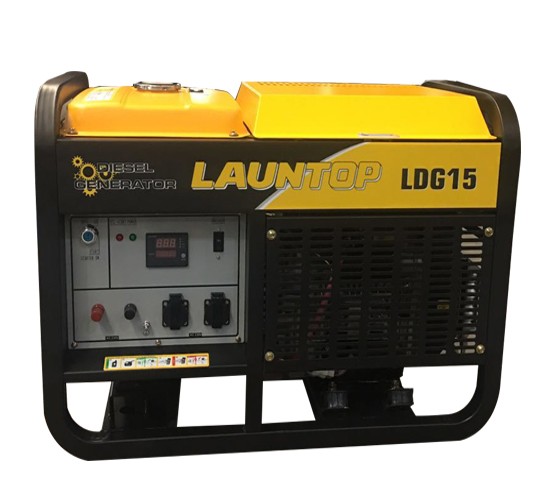

Twin-cylinder diesel generator
LDG15
Feature: |
* Excellent power performance comes from strong power engine 292 |
* Newly upgraded alternator has ≤5% harmonic distortion rate under full load |
* Followed the streamlined design, clear operation interface and easy to maintain. |
* Well satisfy the demands of higher power, lower cost and environmental protection. |
Specification | ||
Model | LDG15 | |
Voltage(V) | 110-240 | |
Frequency(Hz) | 50/60 | |
Rate.AC output | 12/12kW | |
Max.AC output | 13/13kW | |
Power Factor cos¢ | 1 | |
DC output(V/A) | 12/6 | |
Engine model | LA292 | |
Starting system | Electric | |
Displacement(cc) | 997 | |
Engine speed(rpm) | 3000/3600 | |
Lube oil capacity(L) | 3 | |
Fuel tank capacity(L) | 25 | |
Fuel consumption(g/kW h) | ≤268 | |
Noise(7 meters away)dB(A) | ≤82 | |
Dimension(L×W×H)(mm) | 910x578x668 | |
Net weight(recoil)(kg) | 190 |
