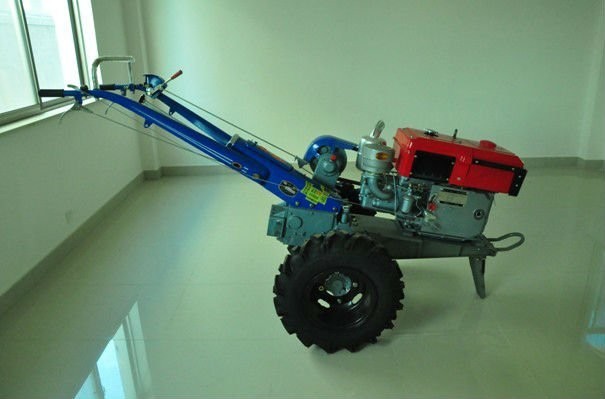

Power Tiller

Model of Power Tiller		Unit	YB-18J	YB-20J
Structure weight	Without rotavator	kg	488	503
	With rotavator		498	513
Working weight (with rotavator)		kg	533	548
Turning speed of rototilling shaft		rpm	188/300
Overall dimensions (LxWxH)		mm	2680 x 1030 x 1250
Number of blades		PCS	24
Rototilling width		mm	800/900
Type of tractor			Single axle, dual-purpose for both traction & drive
Travelling speed	Forword	Km/h	1.4,2.5,4.1,5.3,9.4,15.3
	Reverse		1.1, 3.8
Type size			6.00-12
Wheel track		mm	800, 740, 640, 580(normally use 800)
Min. ground clearance		mm	185
Min. turning radius		m	0.9(with no rotavator)
Model of engine			ZS1105N	ZS1110N
Type of engine			Horizontal 4-stroke
Bore x stroke		mm	105×115	110×115
Total displacement		L	0.9959	1.0931
Compression ratio			17:1
Turing speed of crankshaft		rpm	2200
1-hour rated output		KW/hphp	13.34/18.15	14.7/20
12-hour rated output		KW/hp	12.13/16.5	13.23/18
Specific fuel consumption		g/kw.h	≤246.2	≤244.8
Specific lube oil consumption		g/kw.h	≤2.00	≤1.47
Cooling mode			Condenser (Radiator)
Main farm implements (optional)			100-640 Anti-skid steel wheel Model 100-640 1LS-220 Double-furrow plough Model 1LS-220 1LS-220Y Disk plough Model 1LS-220Y 1LYQ-320 Power driven disk plough Model 1LYQ-320 8Y-80 Sprinkler Model 8Y-80 4GL-130 Swather/reaper Model 4GL-130 7C-1.5 Trailer 7C-1.5 (Standard) 7C-1.5BH Trailer 7C-1.5BH (Hydraulic dumping)
