High Pressure Water Pump

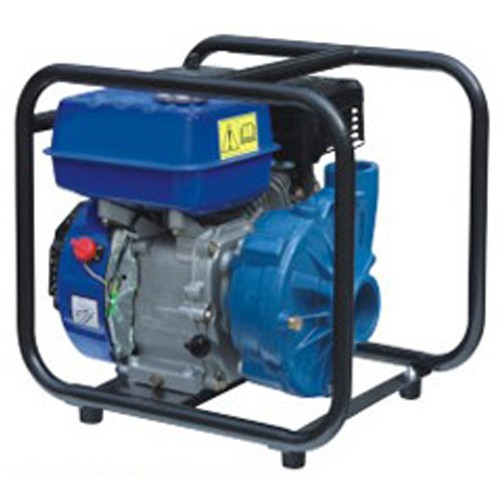

High Pressure Water Pump - Cast Iron HP-40T
HP-40T
| Model | HP-40T(HIGH PRESSURE) |
| CAST IRON PUMP | |
| Discharge port diameter (mm/inch) | 40 (1.5) |
| Suction port diameter(mm/inch) | 50 (2) |
| Discharge capacity [m3/h] | 14 |
| Max head lift [m] | 60 |
| Max suction head [m] | 8 |
| Rotation speed [rpm] | 3600 |
| Overall dimension (LxWxH) [mm] | 520x400x450 |
| Dry weight [kg] | 29 |
| Engine model | SU200 Air-cooled single-cylinder 4-stroke |
| Power [Hp] | 6.5 |
| Rated rotation speed [rpm] | 3600 |
| Fuel tank capacity [L] | 3.5 |
| Fuel consumption [g/KW.h] | 283 |
