Model
|

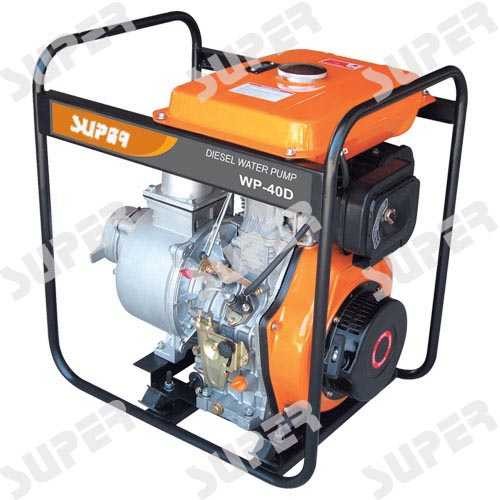

WP-40D/E
|
|
Suction, discharge port diameter [mm (in)]
|
100 (3.94)
|
|
Discharge capacity [m3/h]
|
40
|
|
Total head lift [m (ft)]
|
28 (91.86)
|
|
Max suction head [m (ft)]
|
8 (26.25)
|
|
Rotation speed [rpm]
|
3600
|
|
Priming time [s/4m]
|
180
|
|
Overall dimension (LxWxH) [mm]
|
670x490x625
|
|
Dry weight [kg (lbs.)]
|
69 (151.8)
|
|
Engine model
|
SU186F
|
|
Rated power [KW (Hp)]
|
6.30 (8.50)
|
|
Rated rotation speed [rpm]
|
3600
|
|
Displacement [ml (cu.in)]
|
406 (24.78)
|
|
Starting system
|
Recoil starter/Electric starter
|
|
Fuel tank capacity [L (gal.)]
|
Small tank 5.5 (1.21)
|
|
Fuel consumption [g(ml)/KW.h]
|
280 (333.3)
|
